One Die Two Blow Screw M8 Cold Forging Heading Machine

DUJIANGYAN BEYOND MACHINERY MANUFACTURE CO.,LTD
Contact Now
    Buy cheap One Die Two Blow Screw M8 Cold Forging Heading Machine from wholesalers

    Buy cheap One Die Two Blow Screw M8 Cold Forging Heading Machine from wholesalers
    • Buy cheap One Die Two Blow Screw M8 Cold Forging Heading Machine from wholesalers

    One Die Two Blow Screw M8 Cold Forging Heading Machine

    Ask Lasest Price
    Brand Name : BEYOND MACHINERY
    Model Number : SH-24B
    Certification : ISO9001 CE
    Price : USD 10,000-40,000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 sets 15 days
    Delivery Time : 30-45 DAYS
    • Product Details
    • Company Profile

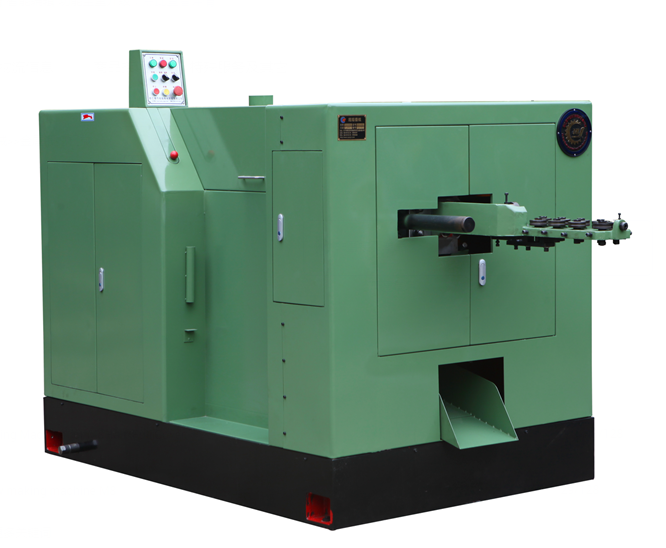

    One Die Two Blow Screw M8 Cold Forging Heading Machine

    Automatic Screw Nail Making Cold Heading Machine For M8 Full Closed

    1. The one-die two-blow heading machine is mainly used to form the head of the screw product.
    2. Its working principle is one-die initial forging, and the two-die forming blank is withdrawn.
    3. It can upset a variety of metal materials: general steel, carbon steel, stainless steel, copper, aluminum, alloy steel.
    4. It used for ordinary self-tapping screws, electrical screws, miniature screws, drilling screws, fiberboard screws, etc product

    KeywordsScrew Making Machine
    AdvantageEasy maintance and cleaning
    ItemCold Forging Equipment
    Key componentsImported from TAIWAN, JAPAN
    QualityHigh precision
    After-sale servicesVedio Technical Support



    Paramenters

    Model
    Max. Blank Diameter
    Max. Blank Length
    Stroke
    Production
    Main motor
    Length*Width*Height
    Weight
    mm
    mm
    mm
    pcs/min
    KW
    mm
    KGs
    SH-24B
    8
    120
    170
    80
    5.5kw-6level
    3270*1200*1580
    4000









    Advantages

    1. Fully-enclosed heading machine, fully protected with sheet metal shield, machine parts are more precise, and noise is low during operation
    2. Fully-enclosed heading machine will not cause oil leakage, and foreign impurities and dust will not enter the machine easily, clean and hygienic
    3. The fully enclosed heading machine is equipped with a fume separation system, which is more conducive to environmental protection



    Certification




    About US




    1. Dujiangyan Beyond Machinery Co.,Ltd was established in 1992. We have 2 factories in DUJIANGYAN CITY.
    2. Our company mainly produce multistage cold forming machines, heading machines and thread rolling machines.
    3. We have large number of advanced technical produce equipment, wirh professional technical operator, excellent senior engineers and professional R&D team.
