1 Die 2 Blow 4mm Automatic Cold Heading Machine

DUJIANGYAN BEYOND MACHINERY MANUFACTURE CO.,LTD
Contact Now
    Buy cheap 1 Die 2 Blow 4mm Automatic Cold Heading Machine from wholesalers

    Buy cheap 1 Die 2 Blow 4mm Automatic Cold Heading Machine from wholesalers
    • Buy cheap 1 Die 2 Blow 4mm Automatic Cold Heading Machine from wholesalers

    1 Die 2 Blow 4mm Automatic Cold Heading Machine

    Ask Lasest Price
    Brand Name : BEYOND MACHINERY
    Model Number : SH-10G
    Certification : ISO9001; CE
    Price : USD 5,000-8,000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 sets 15 days
    Delivery Time : 30-45 DAYS
    • Product Details
    • Company Profile

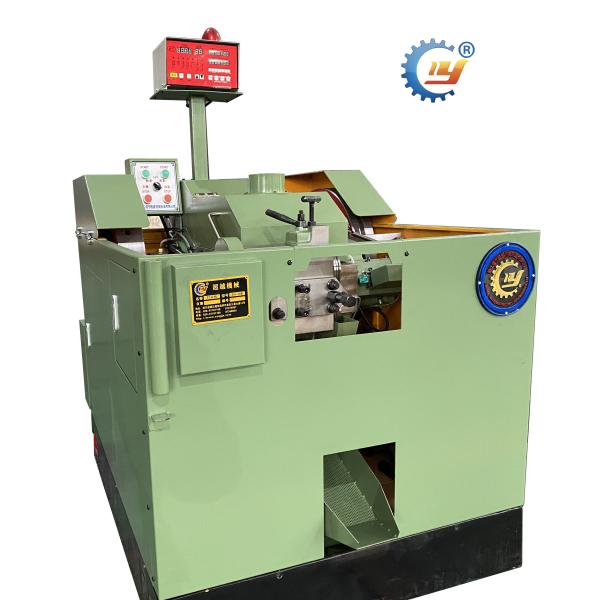

    1 Die 2 Blow 4mm Automatic Cold Heading Machine

    Automatic 1 Die 2 Blow Screw Making Cold Header Machine For M4


    1. Presently it is widely used in Construction, Automobile, Furniture, Electronics, Machinery, Aerospace, National defense industries;
    2. Not only can be used for manufacturing Normal nuts, like Hex nut, Flanged nut, Square nut, Weld nut, Rivet nut, but also Motorcycle link pin, Oil plug screw, Pipe joint, Chain roller, Bearing roller, Bearing ring, Expansion anchor, Bushing sleeve, Bicycle and Motorcycle shaped spare parts, Auto spare parts, shaped nuts and various shaped pieces of shaped and non-standard items;
    3. Up setter various materials: Common steel, carbon steel, stainless steel, copper, aluminum, and alloy steel etc with widely functions. (For the stainless steel and alloy steel, can heat them to the appropriate temperature with the heater, and can up setter.)

    Main functions of cold heading machinery


    It can produce multi-step, two caps, two-headed non-standard, special and other hardware products. It appears greatly reduces the customer's cost of production, so that by the manual, semi-automatic production of metal parts, axle parts available automated production machinery, greatly improving production efficiency, thereby enhancing economic efficiency of enterprises. Highly valued by the client.


    Paramenters


    Model
    Max. Blank Diameter
    Max. Blank Length
    Stroke
    Production
    Main motor
    Length*Width*Height
    Weight
    mm
    mm
    mm
    pcs/min
    KW
    mm
    KGs
    SH-10G
    4
    40
    72
    140-200
    2.2
    1680*940*1050
    1450

    Machine Detail



    Packing


    Wrapped by stretching plastic films

    Port: CHONGQING/NINGBO/ SHANGHAI



    FAQ


    1. Where is your factory?

    Our factory is located in DUJIANGYAN city, SICHUAN province of CHINA. We are near CHENGDU SHUANGLIU INTERNATIONAL AIRPORT(CTU).


    2 How do your factory do the quality control?

    We have a professional inspection team to perform strict inspections on each part of the machine, and debug before the machine leaves the factory


    3. What is the shipment term?

    FOB, CIF, C&F

    If you have any other requirement, please contact with us.


    4. Is there any quality warranty and after-sales service?

    We offer 1 year warranty for machines, free spare parts, vedio technical support, online support.
