Automatic Multistage 5 Station Screw Making Cold Forging Bolt Making Machine

1. This machine adopts a strict casting process and is processed to eliminate residual stress to prevent deformation during use and maintain high precision of machine components for a long time;
2. The pressure wheel presses the material, and the pawl feeding is driven by a cylinder. The material pressing wheel is equipped with an anti-retraction device to prevent the material from retreating;
3. The main motor is equipped with imported frequency converter and PLC control system, which can realize stepless speed regulation of machine production speed;
4. When the user wants to adjust the production of trimming or forming bolts, it is only necessary to change the phase of the side cam, which is very convenient

Specifications

Accessory

1. Lubricating oil tank and cold heading tank are separate exposed structures;
2. Oil tank installed oil filter automatic oil supply system;
3. Lubricating oil tank with oil and slag separator (Taiwan brand);
4. More than five molds adopt front mold blanking structure (optional for customers)
5. PLC adopts Japanese Mitsubishi Electric brand or Schneider CUNEIDER, Germany;
6. All springs are imported from Japan (TOHATSU) and the German standard series DIN.

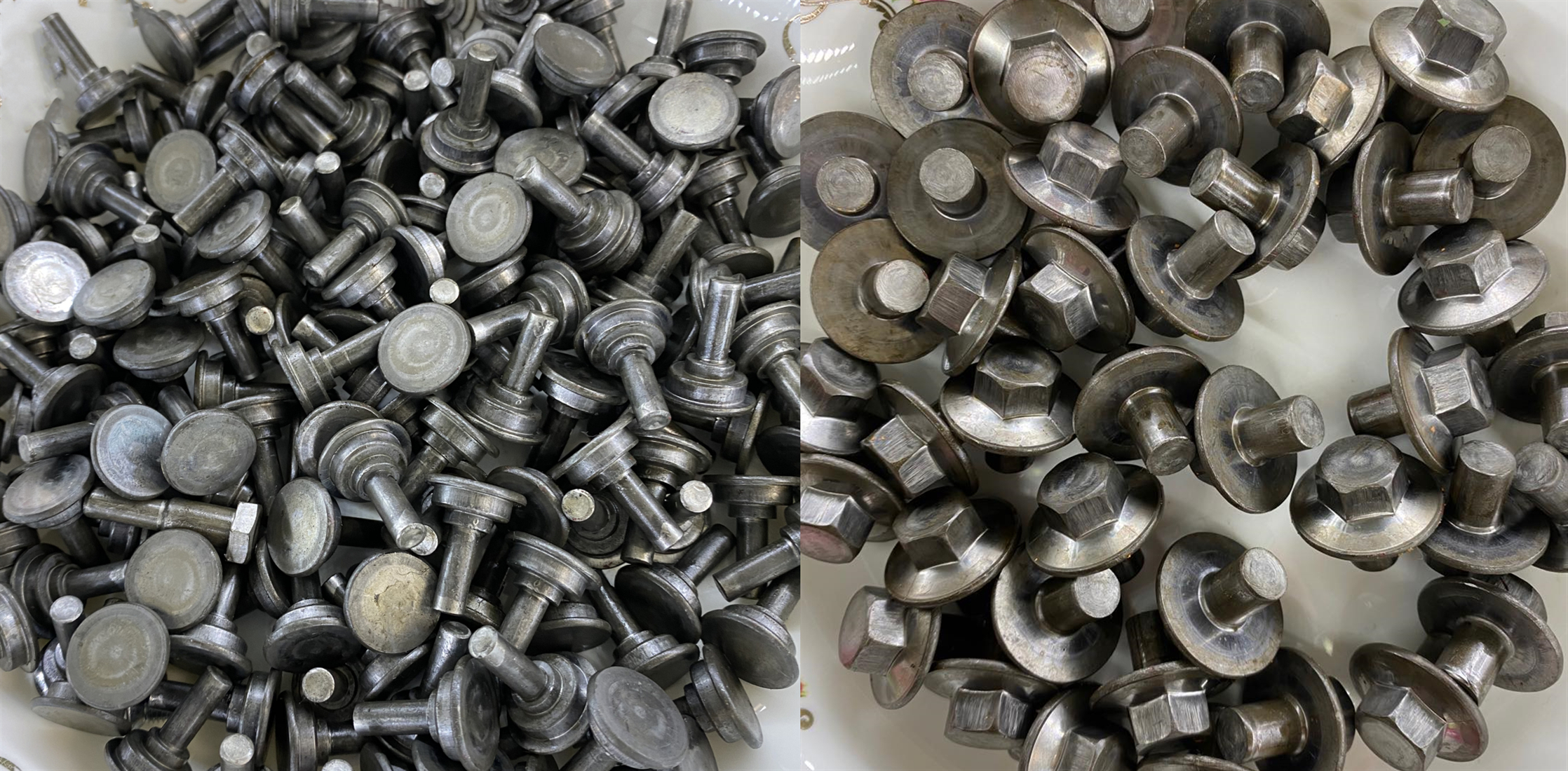

Finished Product

Certifications

Packaging & Delivery

BY SEA BY TRAIN

Company Introduction

1. DUJIANGYAN BEYOND MACHINERY MANUFACTURE CO.,LTD was established in 1993 and is one of the large-scale enterprises that manufacture screw machinery and equipment in China;
2. Our company continuously introduces advanced technologies at home and abroad, has all kinds of outstanding talents in the same industry, and continuously improves its own research and development level;
3. Our company mainly produces a series of digitally controlled screw machine products such as a die and two high-speed heading machine, thread rolling machine, multi-station, etc.

Our service

1. Rich experience and professional technical team
2. Provide one-stop screw cold heading machine service, provide high-speed heading machine, thread rolling machine, multi-station machine
3. The machine raw material is of good quality, using imported parts
4. Long service life, Less maintenance


Dujiangyan Beyond Machinery Manufacturing Co., Ltd. was established in October 1993. We are a leading large-scale enterprise in the production of digital cold heading molding machines in China. In the past 27 years of operation and development, the company has gradually grown from a small factory in Shiyang Town to a equipment manufacturer with fixed assets of 100 million RMB, covers a total area of more than 100 acres and an annual output of more than 2,000 units. The products of BEYOND MACHINERY are led by R & D, design, production, one-stop sales and service.

The main products are intelligent cold heading forming machines ranging from 3 mm 3 die 3 blow to 25 mm 6 die 6 blow. 1 die 2 blow, 2 Die 2 blow, and high speed heading machines. Supporting various types of high-speed thread rolling machines and other digitally controlled screw machinery equipment.

Products have been exported to Thailand, Bangladesh, Egypt, Iran, and Turkey, which reaches 18 countries and regions.
