    5 Die 5 Blow 5 Station 13mm Nut And Bolt Making Machine

    Ask Lasest Price
    Brand Name : BEYOND MACHINERY
    Model Number : CY-105S
    Certification : ISO9001 CE
    Price : USD 18,888-38,888/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 sets 15 days
    Delivery Time : 30-45 DAYS
    • Product Details
    • Company Profile

    5 Die 5 Blow 5 Station 13mm Nut And Bolt Making Machine

    Automatic Multistage 5 die 5 blow Screw Making Cold Forging Bolt Making Machine


    1. Cold heading technology is a cold plastic constrained deformation process technology in metal processing;
    2. It is an advanced production technology with high precision, high efficiency, high quality, low consumption and less cutting.
    3. Cold heading machine is a working mother machine that uses cold heading technology to produce various standard parts, fasteners and special-shaped parts;
    4. With the development of modern industry and the increasingly fierce competition in the manufacturing industry, cold heading technology has been widely used in industrial sectors such as machinery, instrumentation, electrical appliances, light industry, aerospace, shipping, military and other industrial sectors due to its cost-effective process characteristics;
    5. It has become one of the indispensable important processing methods in metal plastic volume forming technology;

    Specifications


    ModelCY-105S
    Forging stationNO.5
    Max. Cutoff Dia.mm13
    Max. Blank Lengthmm155
    Avaliable Bolt Size.mm6-10
    Avaliable Bolt Length under Bolt headmm15-125
    Speedpcs/min55-130
    P.K.O Strokemm30
    K.O Strokemm130
    Die Spacemm90
    Approx. WeightKG24,000
    Cut-off Diemmφ45*59L
    Punch Diemmφ53*115L
    Main Diemmφ75*135L


    Accessory


    1. Lubricating oil tank and cold heading tank are separate exposed structures;
    2. Oil tank installed oil filter automatic oil supply system;
    3. Lubricating oil tank with oil and slag separator (Taiwan brand);
    4. More than five molds adopt front mold blanking structure (optional for customers)
    5. PLC adopts Japanese Mitsubishi Electric brand or Schneider CUNEIDER, Germany;
    6. All springs are imported from Japan (TOHATSU) and the German standard series DIN.

    Finished Product



    Certifications



    Packaging & Delivery



    BY SEA BY TRAIN

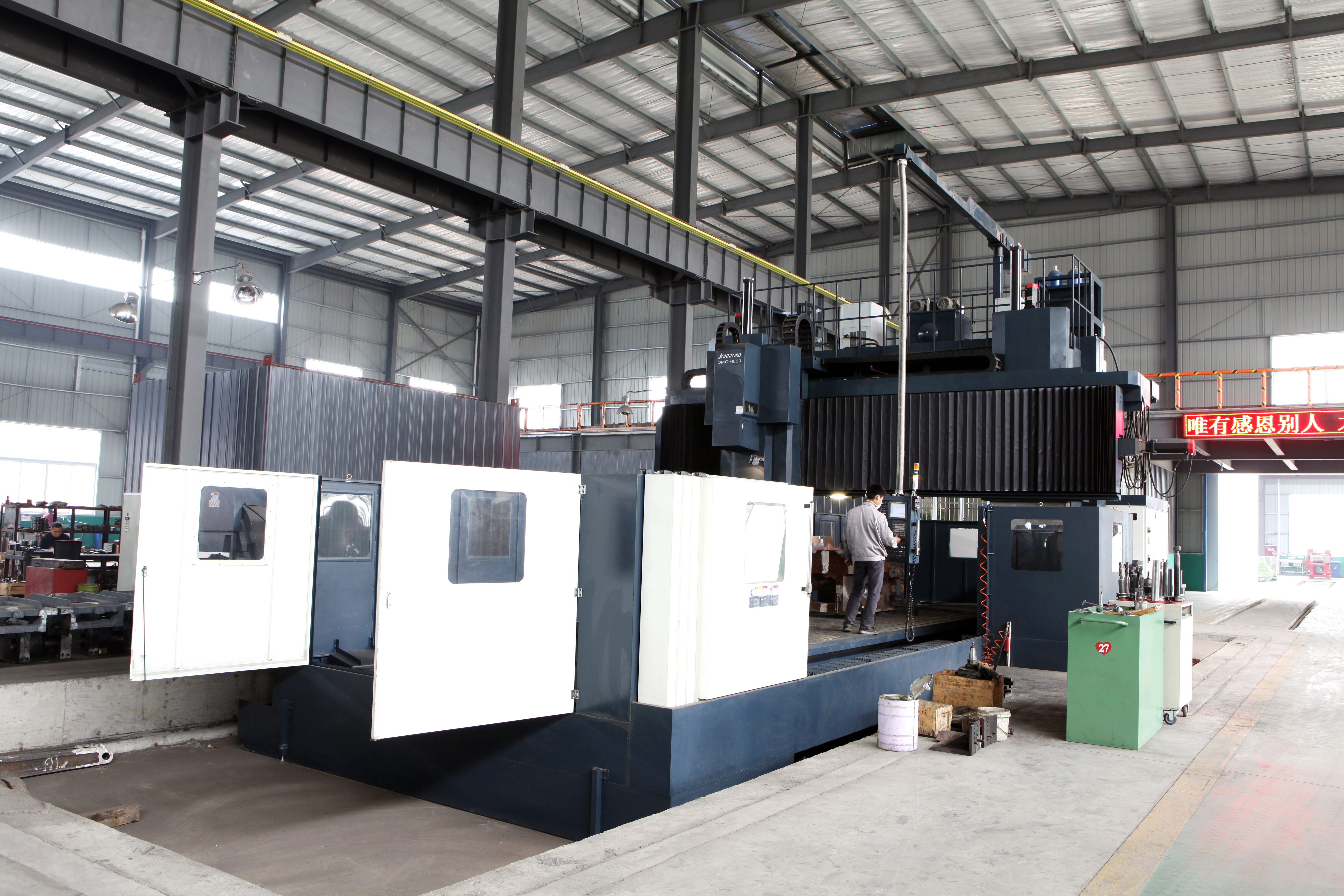

    Company Introduction


    1. DUJIANGYAN BEYOND MACHINERY MANUFACTURE CO.,LTD was established in 1993 and is one of the large-scale enterprises that manufacture screw machinery and equipment in China;
    2. Our company continuously introduces advanced technologies at home and abroad, has all kinds of outstanding talents in the same industry, and continuously improves its own research and development level;
    3. Our company mainly produces a series of digitally controlled screw machine products such as a die and two high-speed heading machine, thread rolling machine, multi-station, etc.


    Our service


    1. Rich experience and professional technical team
    2. Provide one-stop screw cold heading machine service, provide high-speed heading machine, thread rolling machine, multi-station machine
    3. The machine raw material is of good quality, using imported parts
    4. Long service life, Less maintenance
